- New

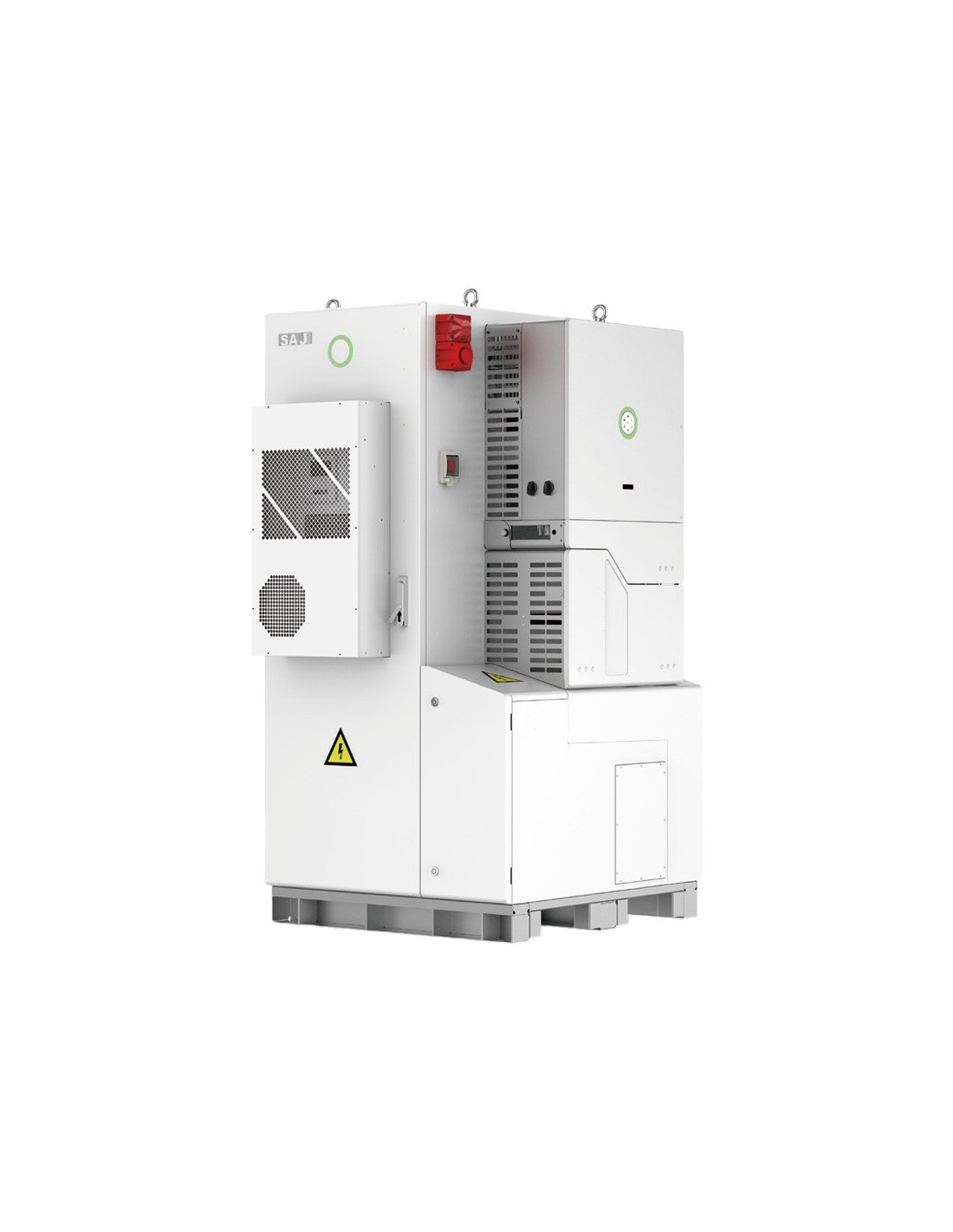

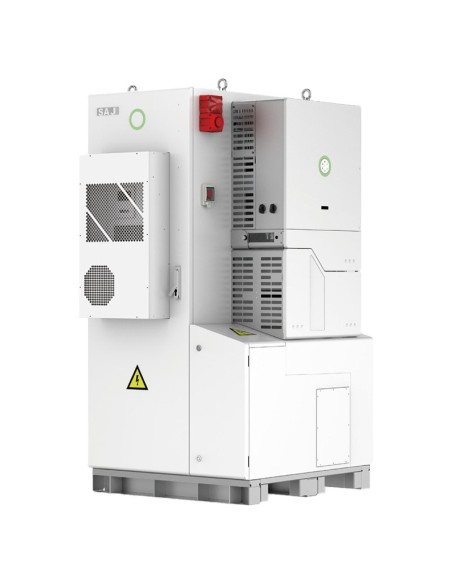

CHS2 SAJ inverter 30kW storage system 57.3kWh commercial industrial
CHS2-30kW-57.3kWh
ALL IN ONE HYBRID SYSTEM FOR COMMERCIAL AND INDUSTRIAL STORAGE
Photovoltaic generation up to 60kWp
ALL IN ONE HYBRID SYSTEM FOR COMMERCIAL AND INDUSTRIAL STORAGE
SAJ's all in one hybrid energy storage system CHS2 is the ideal solution for commercial and industrial photovoltaic applications.
The modularity of the system allows to reach capacity and power by diversifying the customer's needs.
We offer customers a system configuration service. SAJ offers the COMMISSIONING service (Commissioning of the system after installation).
Ideal solution for all C&I storage scenarios
General characteristics
- Suitable for both DC coupling and AC retrofit;
- Parallelable up to 10 units’;
- Hybrid inverter power 30kW or 50kW;
- oversized by 200%;
- Battery capacity: 57; 72; 85; 100 kWh;
- IP55 cabinet;
- On-board air conditioning system;
- Fire suppression system as standard;
- CEI 016 and CEI 021;
- Modularity from 57kWh to 4MWh;
- Back up line as standard;
- Diesel generator management as standard;
- No assembly required;
- Quick installation;
- High voltage system;
- Control remote via Elekeeper app;
- Free commissioning support.
- 22.5A string current corresponding to a high power PV panel;
- 6 MPPT, supports 200% oversizing;
- Using 280Ah C&I cells, good performance and higher energy density;
- AFCI standard to prevent fire;
- Support basic health alerts, CO, fire detection;
- Fire protection at the switchboard level;
- SPD Type II AC and DC;
- Factory pre-installed, no need for on-site installation and debugging;
- GD (diesel generator) access, no need for additional equipment;
- AC coupling available;
- PV and battery are DC coupled with high efficiency;
- Wide environmental adaptability enhances VPP revenue;
- Intelligent scheduling and multiple scheduling modes.
