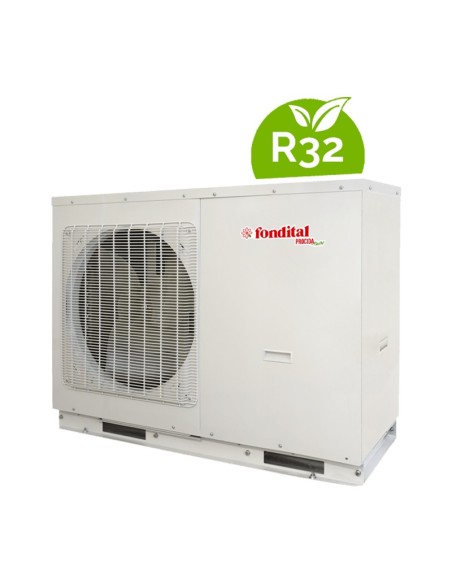

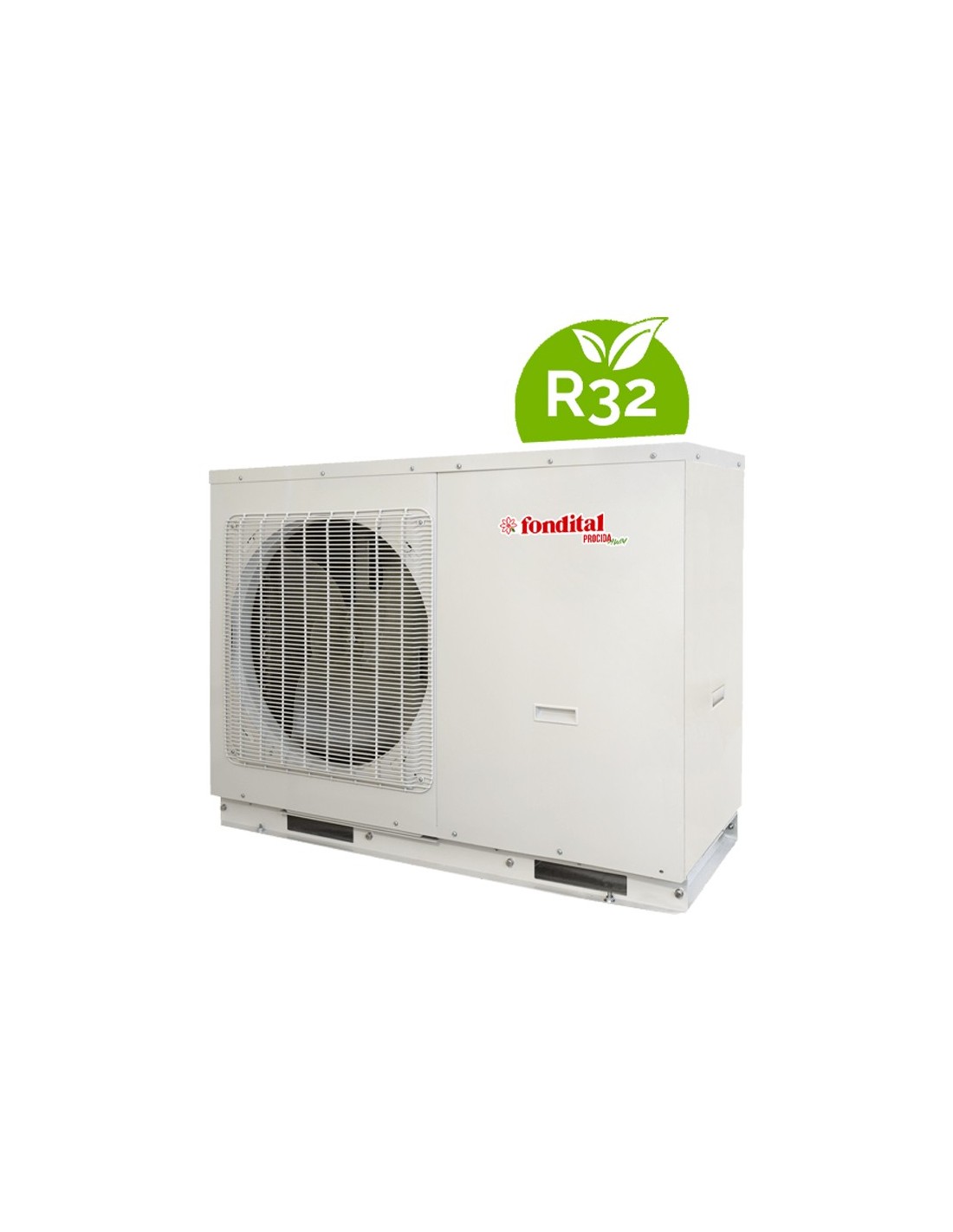

Single-phase 16kW air-water monobloc inverter heat pump FONDITAL model Procida AWM X16

PLUS

• CLASS A+++ for models X6 - X8 - X10 - X12 and T12. CLASS A++ for models X14 - X16 - T14 - T16 (for average climate conditions and for low-temperature application, according to EU regulation 811/2013, EN 14825)
• High COP for heating performance
• Touch-screen control panel with user interface provided as standard. To be installed inside the house

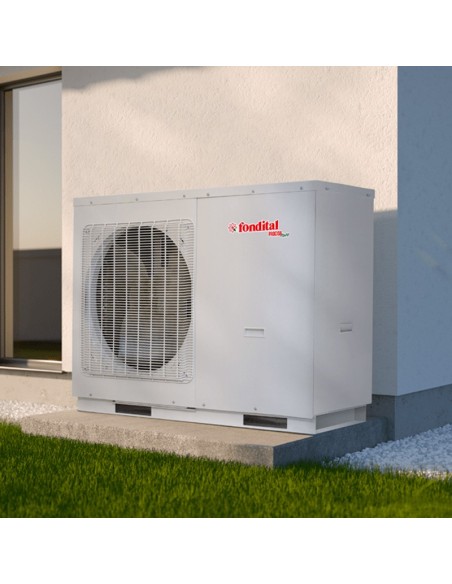

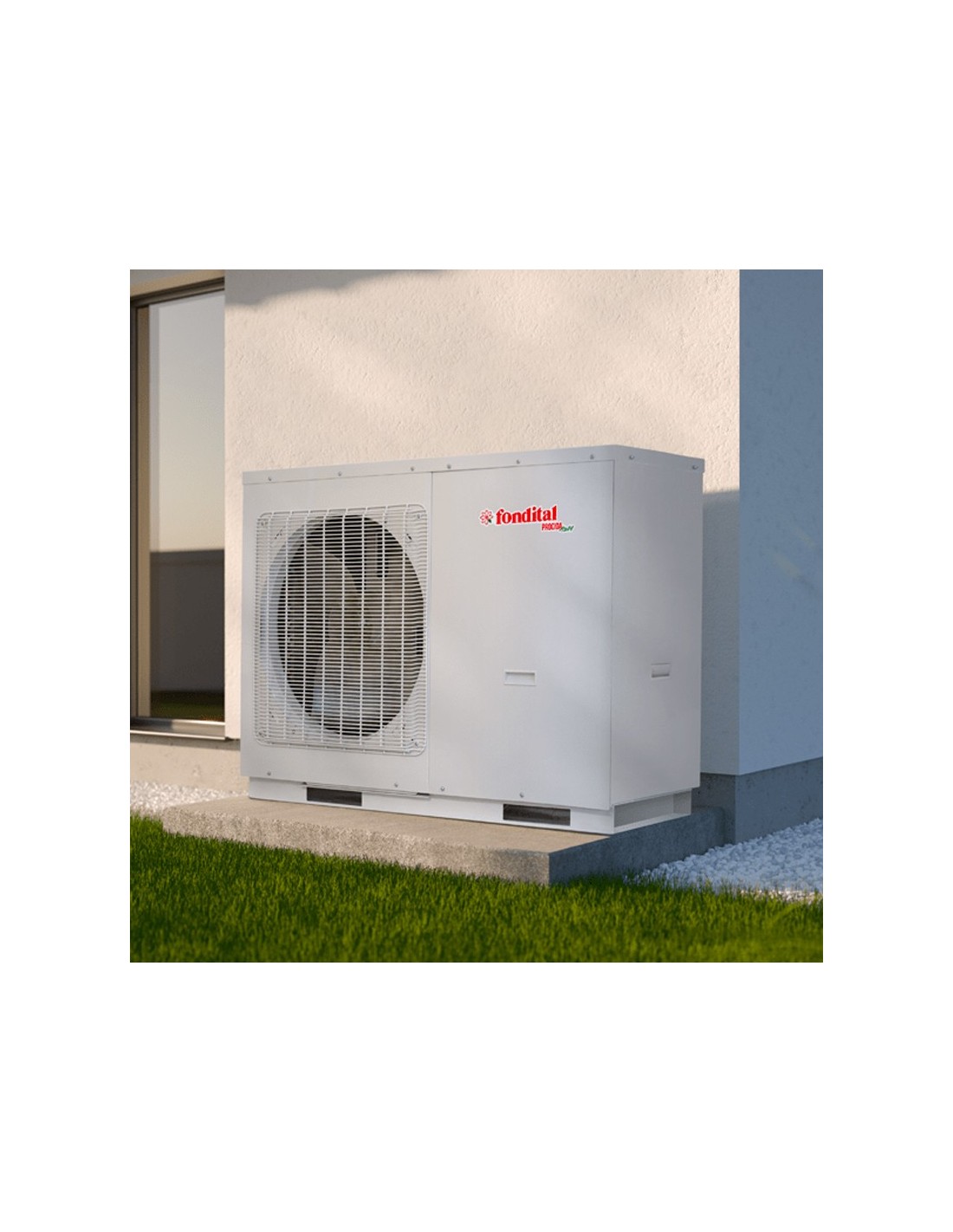

• Compact size and outdoor installation monobloc (the whole system is included in a single body, the higher power sizes are also single-fan)
• Reduced impact on global warming thanks to the use of R32 gas (GWP = 675)
• It can be matched with DHW production boilers, heating elements boilers and back-up boilers
• Included in the price: heat pump, control panel, water filter and tank probe

FEATURES

• Integrated hydraulic unit with expansion vessel, high efficiency pump, plate exchanger, flow switch, vent and safety valve
• Twin rotary DC inverter compressor and brushless DC inverter axial fan
• Hydrophilic treated finned coil - Improved resistance to corrosion and condensation formation prevention
• Management of 3-way valve (not included) for hot water production
• Electronic expansion valve for refrigerant fluid optimisation
• Heating element on the base (prevents ice formation)
• Climate control and “Quiet” function for silent mode

Models	Refrigerant gas	Alimentation	Nominal heat output Water T 35°C [kW] (1)	Nominal heat output Water T 55°C [kW] (1)	Energy efficiency class Water T = 35°C (2)	Energy efficiency class Water T = 55°C (2)	Packaging dimensions WxHxD [mm]	Gross weight [Kg]
X6	R32	Single-phase	6,0	5,52			1258x900x488	109
X8	R32	Single-phase	7,5	6,90			1258x900x488	109
X10	R32	Single-phase	10,0	9,20			Single-phase	166
X12	R32	Single-phase	12,0	11,04			1288x1020x588	166
X14	R32	Single-phase	14,0	12,88			1288x1020x588	166
X16	R32	Single-phase	15,5	14,26			1288x1020x588	166
T12	R32	Three-phase	12,0	11,04			1288x1020x588	166
T14	R32	Three-phase	14,0	12,88			1288x1020x588	166
T16	R32	Three-phase	15,5	14,26			1288x1020x588	166

(1) Outdoor air T 7°C dry bulb/6°C wet bulb
Inlet water T / outlet water T: 30 / 35 °C
Inlet water T / outlet water T: 50 / 55°C
According to EN 14511
(2) According to EN 14825
