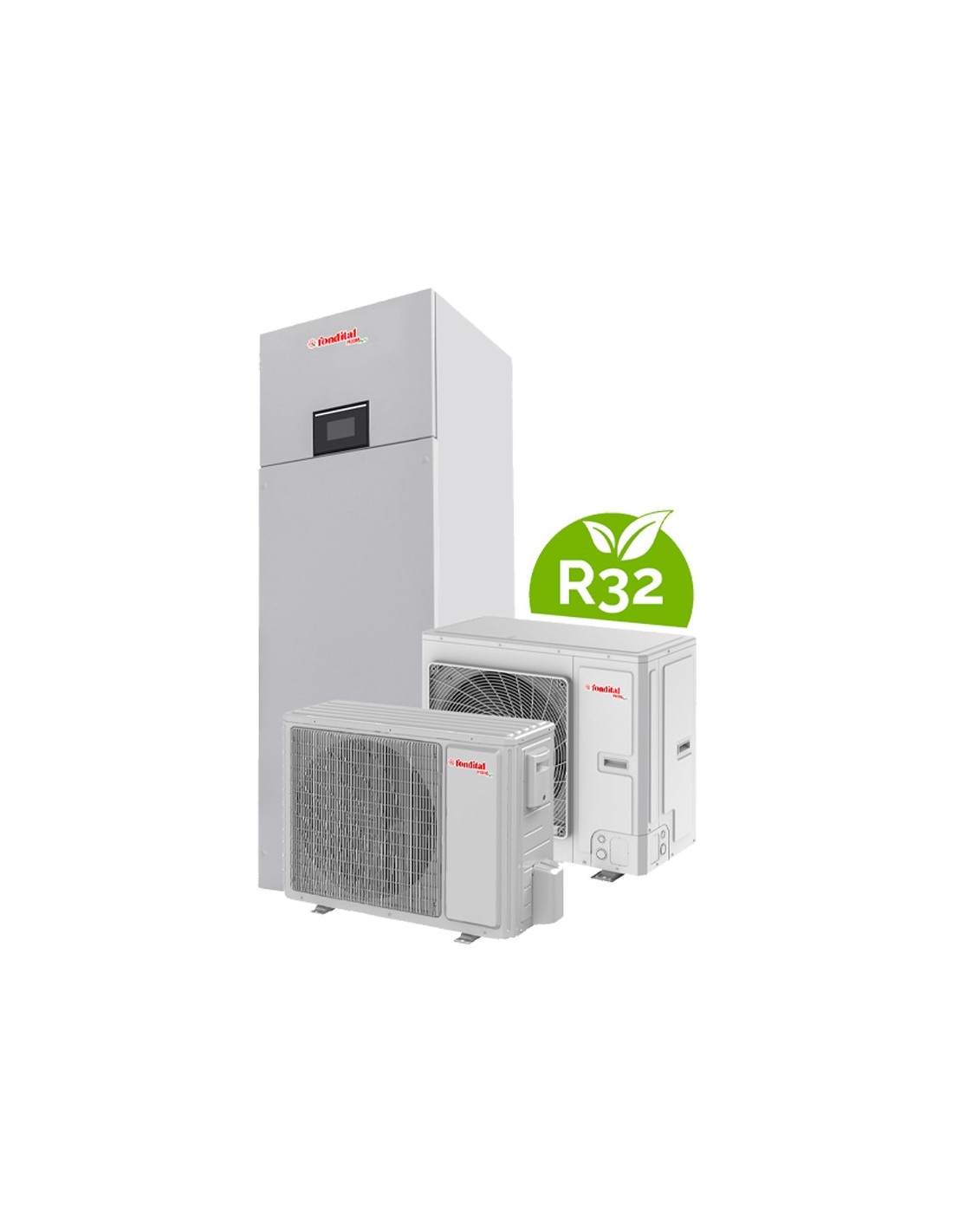

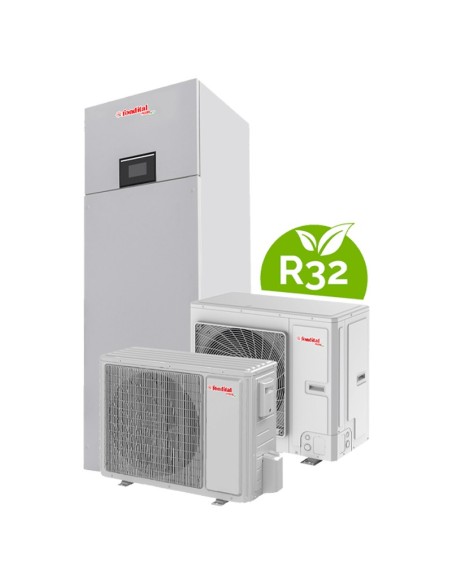

6kW air-water split inverter heat pump with integrated boiler FONDITAL model Procida AWS XB6

PLUS

• CLASS A+++ (for average climate conditions and for low-temperature application, according to EU regulation 811/2013, EN 14825)
• Indoor unit with 185-litre storage tank for DHW production with back-up resistor
• High COP for heating performance
• Touch-screen control panel with user interface provided as standard and fitted on indoor unit
• Reduced impact on global warming thanks to the use of R32 gas (GWP = 675)
• Included in the price: heat pump, control panel and water filter

FEATURES

• Integrated hydraulic unit with expansion vessel, high efficiency pump, plate exchanger, flow switch, vent and safety valve
• Twin rotary DC inverter compressor and brushless DC inverter axial fan
• Hydrophilic treated finned coil - Improved resistance to corrosion and condensation formation prevention
• Electronic expansion valve for refrigerant fluid optimisation
• Heating element on the base of the outdoor unit (prevents ice formation)
• Climate control and “Quiet” function for silent mode

Models	Refrigerant gas	Description	Nominal heat output Water T 35°C [kW] (1)	Nominal heat output Water T 55°C [kW] (1)	Energy efficiency class Water T = 35°C (2)	Energy efficiency class Water T = 55°C (2)	Packaging dimensions WxHxD [mm]	Gross weight [Kg]
XB4	R32	u.e.: PROCIDA AWS 4 (O)  u.i.: PROCIDA ITU4	4,0	3,7			u.e.: 1028x830x458 u.i.: 683x2000x803	u.e.: 65 u.i.: 233
XB6	R32	u.e.: PROCIDA AWS 6 (O)  u.i.: PROCIDA ITU6	6,0	5,9			u.e.: 1028x830x458 u.i.: 683x2000x803	u.e.: 65 u.i.: 233
XB8	R32	u.e.: PROCIDA AWS 8 (O)  u.i.: PROCIDA ITU 8	8,0	7,4			u.e.: 1097x937x478 u.i.: 683x2000x803	u.e.: 92 u.i.: 233
XB10	R32	u.e.: PROCIDA AWS 10 (O)  u.i.: PROCIDA ITU 10	9,5	8,7			u.e.: 1097x937x478 u.i.: 683x2000x803	u.e.: 92 u.i.: 233

u.e. = outdoor unit
u.i. = indoor unit

(1) Outdoor air T 7°C dry bulb/6°C wet bulb
Inlet water T / outlet water T: 30 / 35 °C
Inlet water T / outlet water T: 50 / 55°C
According to EN 14511
(2) According to EN 14825
