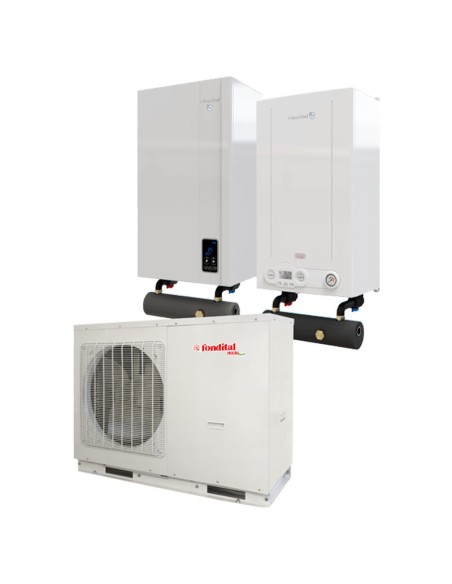

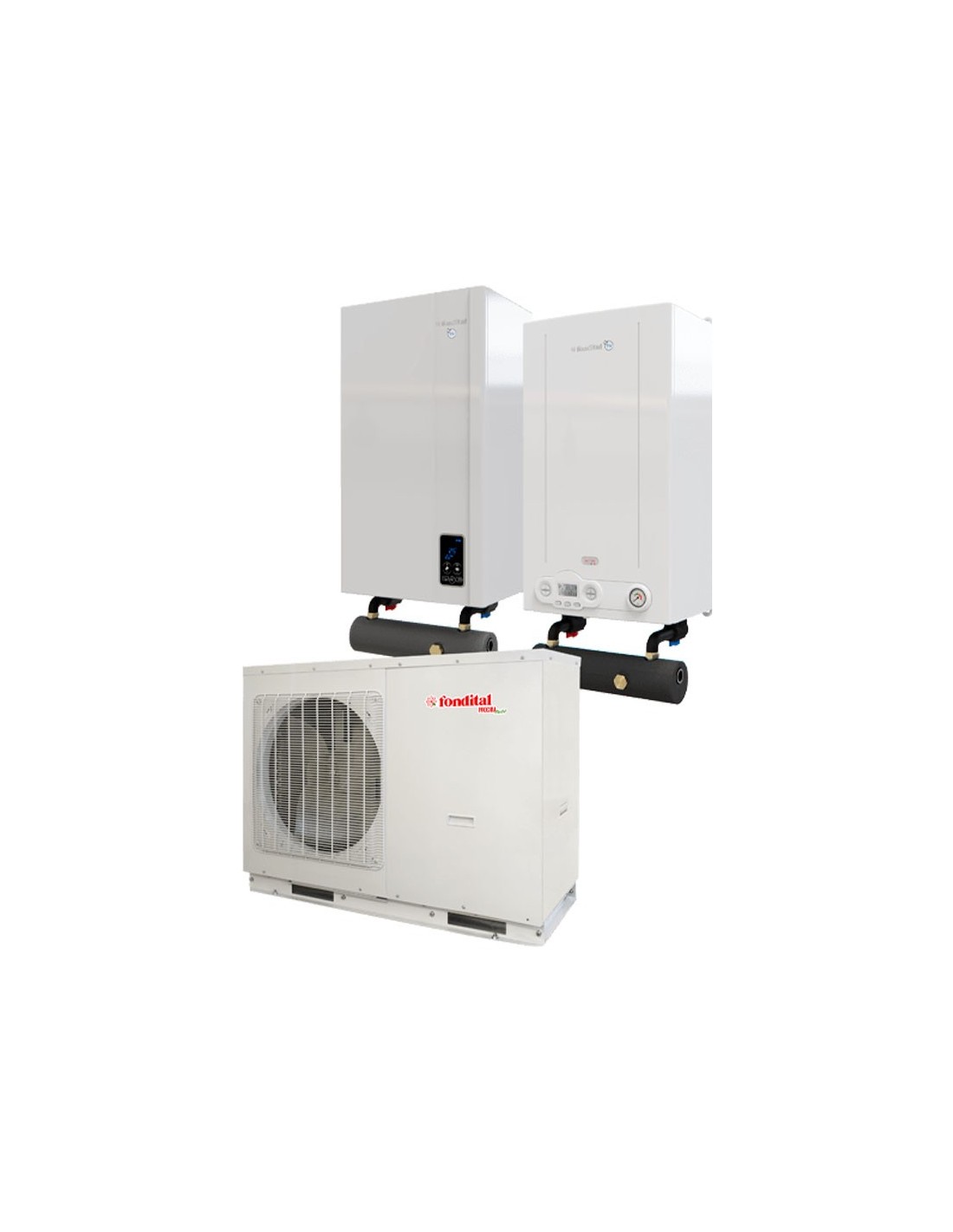

Three-phase compact hybrid system Procida AWM T12 12kW heat pump and Ischia KC 28 S FONDITAL condensing boiler
DSBI020016
Compact hybrid system with instantaneous production of domestic hot water
The system consists of a monoblock air-water heat pump and an instantaneous combined condensing boiler
You might also like
Single-phase compact hybrid system Procida AWM T12 12kW heat pump and Ischia KC 28 S FONDITAL condensing boiler
PLUS
- Monobloc air-water heat pump in class A+++ (A++ for X14 and T14 models)
- Instantaneous combined condensing boiler in class A
- Hydraulic unit under the boiler for integration
- Touch screen heat pump control panel as standard, to be remotely installed inside the home
- Y filter for heat pump included
- External probe for boiler included
FEATURES
- Suitable for systems with max. temperature 60 °C
- The domestic hot water is produced by the boiler instantly
- Included in the supply: water temperature probes, relay for electrical connection heat pump - boiler
Boiler technical data for combination
| Models | Power supply | Nominal heat input [kW] | Dimensions W x H x D [mm] |
Gross weight [Kg] |
|---|---|---|---|---|
| ISCHIA KC 24 S | METHANE PROPANE |
23,7 |
400x700x250 | 32,0 |
| ISCHIA KC 28 S | METHANE PROPANE |
26,4 |
400x700x250 | 33,5 |
| FORMENTERA KC 32 | METHANE PROPANE |
30,4 |
420x750x315 | 40,5 |
Heat pump technical data
| Models | Power supply | Refrigerant gas | Nominal heating capacity water T 35°C [kW] (1) | Nominal heating capacity water T 55°C [kW] (1) | Energy efficiency class T water 35°C (2) | Energy efficiency class T water 55°C (2) |
|---|---|---|---|---|---|---|
| X6 | Single-phase |
R32 |
6,0 | 5,52 |  |
 |
| X8 | Single-phase |
R32 |
7,5 | 6,90 | |
|
| X10 | Single-phase |
R32 |
10,0 | 9,20 | |
|
| X12 | Single-phase |
R32 |
12,0 | 11,04 | |
|
| X14 | Single-phase |
R32 |
14,0 | 12,88 | |
|
| T12 | Three-phase |
R32 |
12,0 | 11,04 | |
|
| T14 | Three-phase |
R32 |
14,0 | 12,88 | |
|
(1) External air temperature 7°C dry bulb / 6°C wet bulb Water inlet temperature / Water outlet temperature: 30 / 35 °C - Water inlet temperature / Water outlet temperature: 50 / 55 °C - According to EN 14511
(2) According to EN 14825
Hybrid system energy efficiency class
| Models | Seasonal energy efficiency class of space heating | Water heating energy efficiency class | Declared load profile |
|---|---|---|---|
| KC 24 + AWM X6 |  |
 |
XL |
| KC 24 + AWM X8 | |
|
XL |
| KC 24 + AWM X10 | |
|
XL |
| KC 28 + AWM X6 | |
|
XL |
| KC 28 + AWM X8 | |
|
XL |
| KC 28 + AWM X10 | |
|
XL |
| KC 28 + AWM X12 | |
|
XL |
| KC 28 + AWM T12 | |
|
XL |
| KC 32 + AWM X6 | |
|
XXL |
| KC 32 + AWM X8 | |
|
XXL |
| KC 32 + AWM X12 | |
|
XXL |
| KC 32 + AWM X14 | |
|
XXL |
| KC 32 + AWM T12 | |
|
XXL |
| KC 32 + AWM T14 | |
|
XXL |
- Power
- 12kW
- Single-phase/Three-phase
- Three-phase
- Refrigerant gas
- R32
