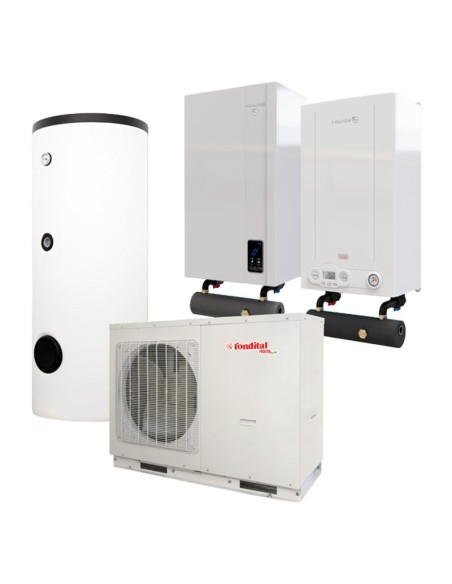

Single-phase compact hybrid system Procida AWM X12 12kW heat pump Formentera KRB 32 condensing boiler and 300 SS FONDITAL boiler
DSBI020038
Compact hybrid system with domestic hot water production with boiler
The system is composed of a monobloc air-water heat pump, a heating-only condensing boiler and a domestic hot water boiler
You might also like
Single-phase compact hybrid system Procida AWM X12 air-water monobloc 12kW heat pump and Formentera KRB 32 condensing boiler and 300 liters 300 SS FONDITAL boiler
PLUS
- Monobloc air-water heat pump in class A+++ (A++ for the X14 and T14 models)
- Class A condensing boiler for heating only with integrated three-way valve
- Hydraulic group under integration boiler and domestic hot water boiler
- Domestic hot water is produced by a boiler served by a heat pump and boiler – it meets the need for 50% domestic hot water production from renewable energy sources
- Touch screen heat pump control panel as standard, to be remotely controlled inside the home
- Y-filter for heat pump included
- External boiler probe included
TECHNICAL FEATURES
- Suitable for systems with a max temperature of 60°C
- Included in the supply: water temperature probes, relay for electrical connection heat pump - boiler
Boiler technical data for combination
| Models | Power supply | Nominal heat input [kW] | Dimensions W x H x D [mm] |
Gross weight [Kg] |
|---|---|---|---|---|
| ISCHIA KRB 24 S | METHANE PROPANE |
23,7 |
400x700x250 | 31,0 |
| ISCHIA KRB 28 S | METHANE PROPANE |
26,4 |
400x700x250 | 32,5 |
| FORMENTERA KRB 32 | METHANE PROPANE |
30,4 |
420x750x315 | 40,0 |
Heat pump technical data
| Models | Power supply | Refrigerant gas | Nominal heating capacity water T 35°C [kW] (1) | Nominal heating capacity water T 55°C [kW] (1) | Energy efficiency class T water 35°C (2) | Energy efficiency class T water 55°C (2) |
|---|---|---|---|---|---|---|
| X6 | Single phase |
R32 |
6,0 | 5,52 |  |
 |
| X8 | Single phase |
R32 |
7,5 | 6,90 | |
|
| X10 | Single phase |
R32 |
10,0 | 9,20 | |
|
| X12 | Single phase |
R32 |
12,0 | 11,04 | |
|
| X14 | Single phase |
R32 |
14,0 | 12,88 | |
|
| T12 | Three phase |
R32 |
12,0 | 11,04 | |
|
| T14 | Three phase |
R32 |
14,0 | 12,88 | |
|
(1) External air temperature 7°C dry bulb / 6°C wet bulb Water inlet temperature / Water outlet temperature: 30 / 35 °C - Water inlet temperature / Water outlet temperature: 50 / 55 °C - According to EN 14511 (2) According to EN 14825
Technical data of the boiler for combination
| Models | Dispersion [W] | Usable volume [l] | D x H [mm] | Empty weight [Kg] |
|---|---|---|---|---|
| 200 SS | 51 |
190 |
640 x 1215 | 96 |
| 300 SS | 63 |
263 |
640 x 1615 | 130 |
Hybrid system energy efficiency class
| Models | Seasonal energy efficiency class of space heating | Water heating energy efficiency class | Declared load profile |
|---|---|---|---|
| KRB 24 + AWM X6 + 200 |  |
 |
XL |
| KRB 24 + AWM X8 + 200 | |
|
XL |
| KRB 24 + AWM X10 + 200 | |
|
XL |
| KRB 24 + AWM X6 + 300 | |
|
XL |
| KRB 24 + AWM X8 + 300 | |
|
XL |
| KRB 24 + AWM X10 + 300 | |
|
XL |
| KRB 28 + AWM X6 + 200 | |
|
XL |
| KRB 28 + AWM X8 + 200 | |
|
XL |
| KRB 28 + AWM X10 + 200 | |
|
XL |
| KRB 28 + AWM X12 + 200 | |
|
XL |
| KRB 28 + AWM T12 + 200 | |
|
XL |
| KRB 28 + AWM X8 + 300 | |
|
XL |
| KRB 28 + AWM X10 + 300 | |
|
XL |
| KRB 28 + AWM X12 + 300 | |
|
XL |
| KRB 28 + AWM T12 + 300 | |
|
XL |
| KRB 32 + AWM X6 + 200 | |
|
XL |
| KRB 32 + AWM X8 + 200 | |
|
XL |
| KRB 32 + AWM X10 + 200 | |
|
XL |
| KRB 32 + AWM X12 + 200 | |
|
XL |
| KRB 32 + AWM X14 + 200 | |
|
XL |
| KRB 32 + AWM T12 + 200 | |
|
XL |
| KRB 32 + AWM T14 + 200 | |
|
XL |
| KRB 32 + AWM X6 + 300 | |
|
XL |
| KRB 32 + AWM X8 + 300 | |
|
XL |
| KRB 32 + AWM X10 + 300 | |
|
XL |
| KRB 32 + AWM X12 + 300 | |
|
XL |
| KRB 32 + AWM X14 + 300 | |
|
XL |
| KRB 32 + AWM T12 + 300 | |
|
XL |
| KRB 32 + AWM T14 + 300 | |
|
XL |
- Power
- 12kW
- Single-phase/Three-phase
- Single-phase
- Refrigerant gas
- R32
- Boiler volume
- 300 L
